Conveyor Idlers

Veyex designs and manufactures a complete range of conveyor idlers & rollers, for belt widths from 350-3500mm and sized from 89-250mm in diameter.

Veyex conveyor idlers and conveyor rollers are designed to operate in the most extreme of environments, each conveyor idler set and or conveyor roller is supported by the industries lowest breakaway mass, close tolerances, duty matched shafts, effective seals and premium bearings.

Due to the energy efficiency and low noise of our idlers, Veyex idlers are typically the idler of choice for long overland and large in-plant conveyor systems.

All conveyor idlers are available as standard with galvanised, painted finishes or stainless steel.

Learn more about Conveyor Rollers and Composite Rollers

Key Features

Idlers Product Range

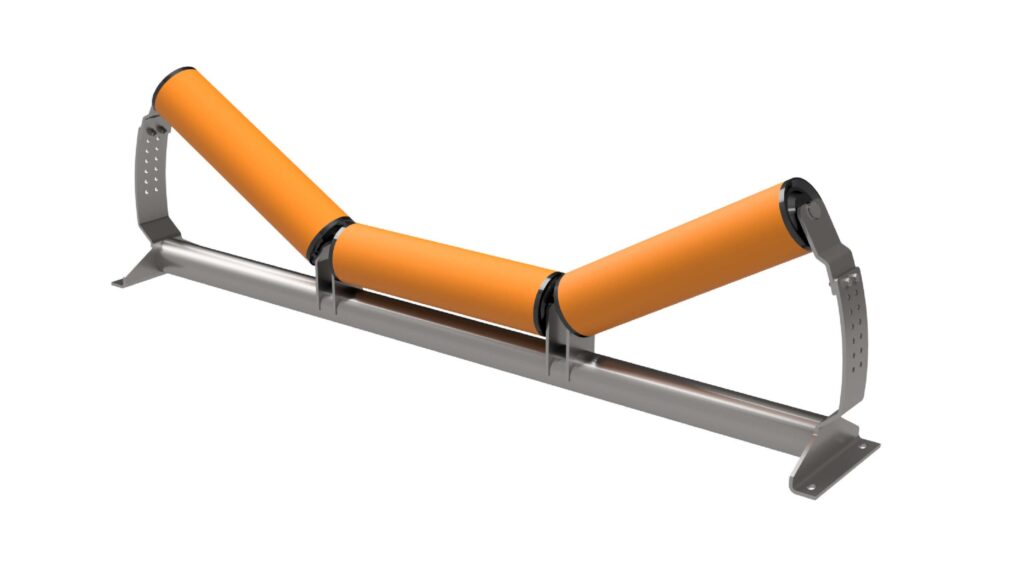

Transition

Variable conveyor idler sets to assist belt transitions

  • Trough angles from 5-45 degree
  • Retractable and standard design idlers
  • Available in 3 or 5 roll designs.
  • Offset and inline designs available.

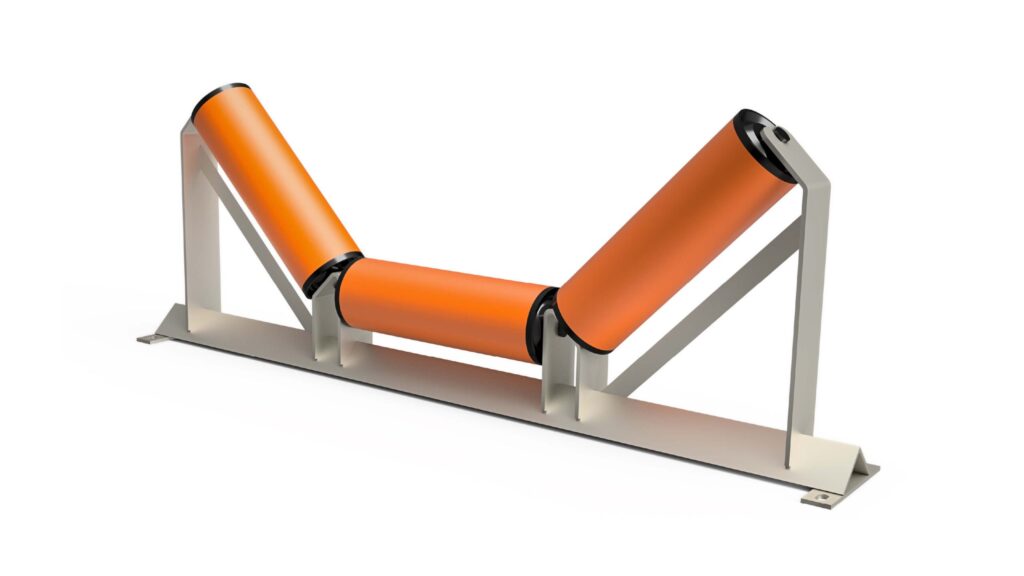

Carry

Designed to maintain the belt profile and excellent belt support

  • Trough angles from 20-45 degrees
  • Retractable options
  • Precision conveyor idler sets available to ensure low rolling resistance.
  • Offset and inline designs available.

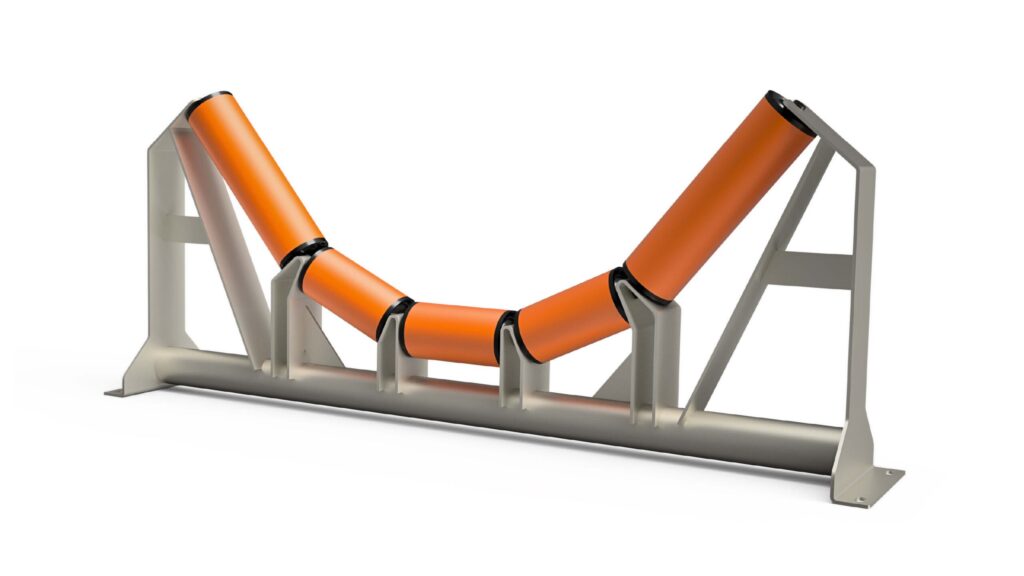

5 Roll

Designed for high load applications or were roll weight is a concern.

  • Ideal for large belts >1800mm wide
  • Trough angles from 35-60 degrees
  • Reduced roll weights
  • Potential to reduce bearing sizes
  • Higher carrying capacity
  • Offset and inline designs available.

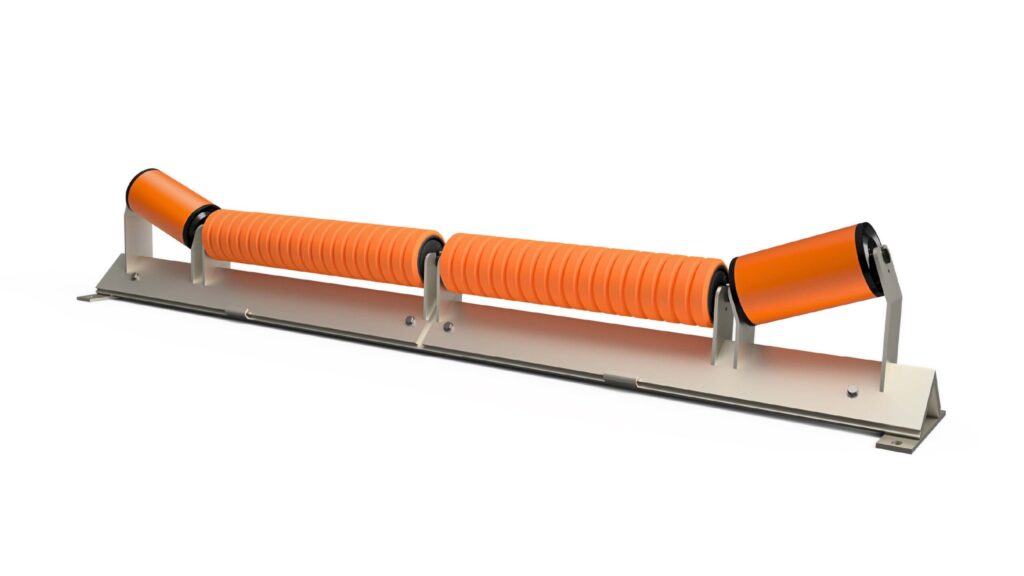

Flat Carry

Designed for belt feeders and other special applications

  • Standard retractable design
  • High capacity conveyors
  • 0-20 degree trough angles
  • For use on the carry or return side of the conveyor.

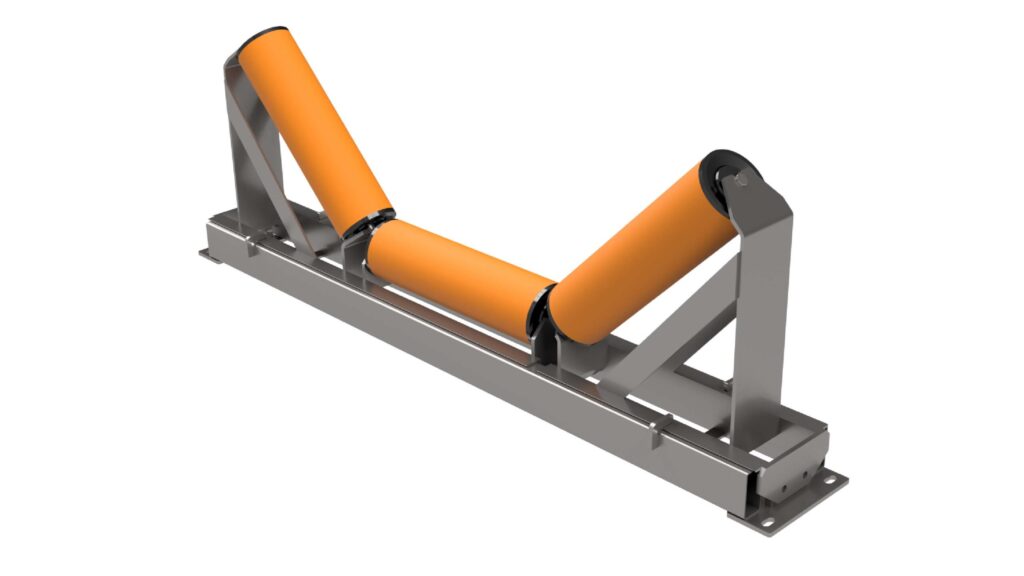

Retractable

For difficult or hard to reach locations, retractable idlers provide a safe solution

  • Ideal for impact zones or tripper cars
  • Single side retractable options available.
  • Standard duty and heavy duty options
  • Special features to prevent frames tipping while retracted.

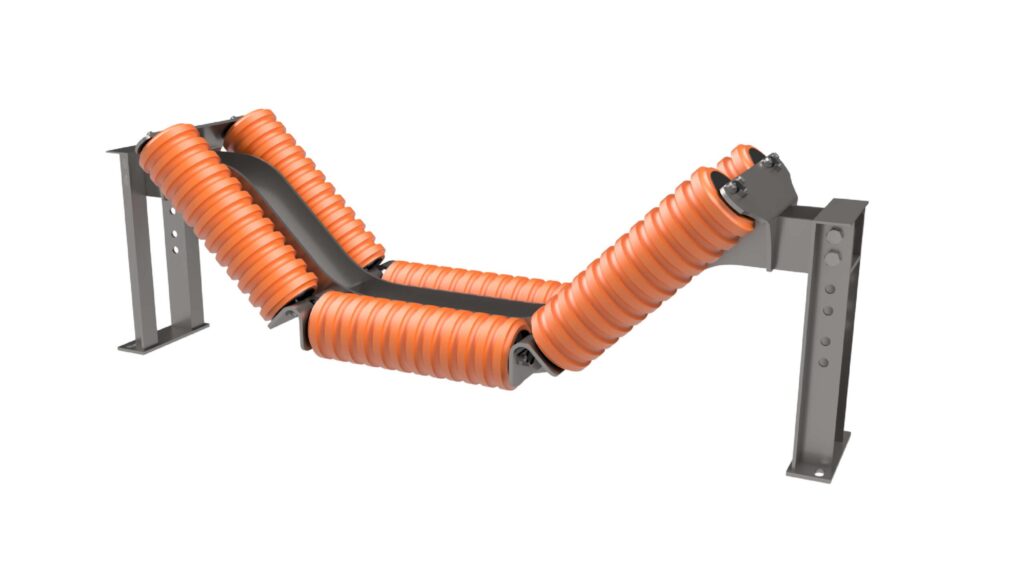

Drop Down Carry

Our drop down idlers are design for hard to reach locations for both impact and standard carry idlers.

  • Purpose designed for each application.
  • Jacking points for hydraulic jacks.
  • Heavy duty design to minimise frame deflection.
  • Multiple crossmember fixing points to improve rigidity and reduce noise.
Drop Down Impact

Designed for extra heavy duty impact applications.

  • Hydraulic jacking points for ease of use.
  • Available in 3, 5 & 6 roll inline designs
  • Options to reduce roll weights.
  • Keeper plates supplied as standard
  • Conveyor idler roll slots reinforced to minimise damage from vibration or movement.

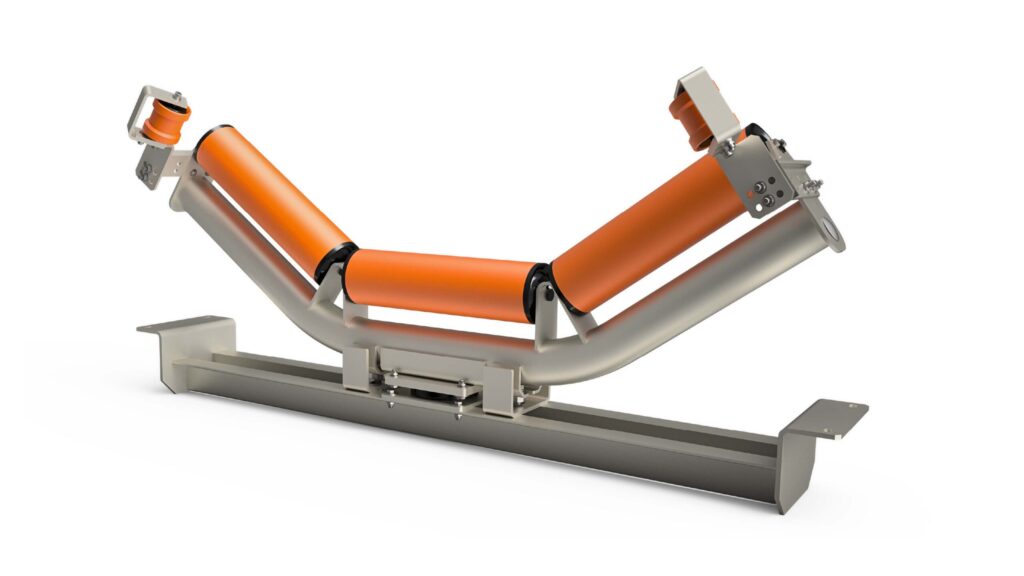

Carry Training

Our training idlers are designed to maintain the belt profile and optimal location, featuring:

  • Dual pivot bearing
  • Options for steel, composite or PU guide rolls.
  • Conveyor idler rolls supplied in rubber or PU lagged or composite construction.
  • Standard and application specific designs.
  • Designed to minimise material buildup on the frame.

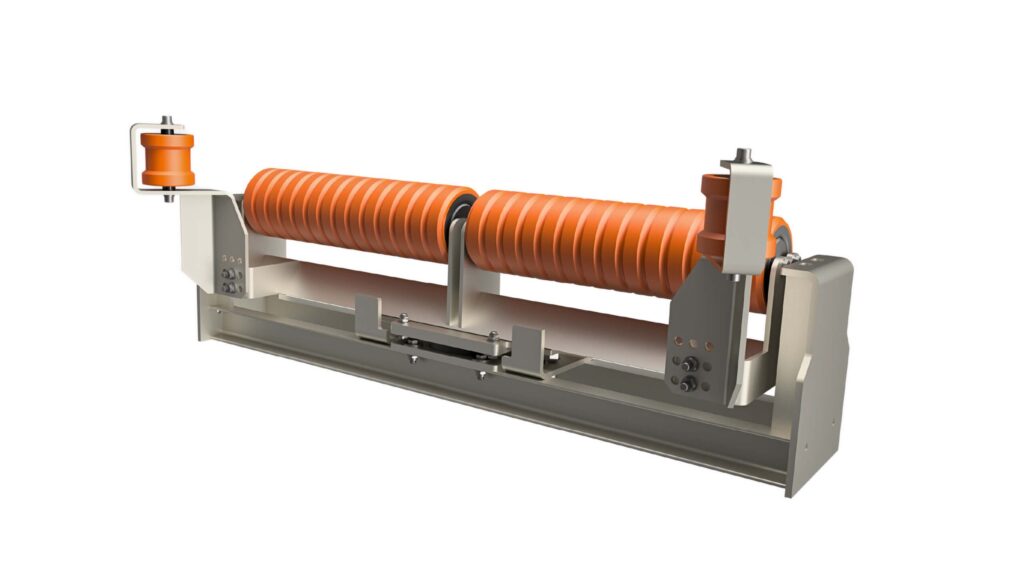

Return Training

Our return training idlers are designed to maintain the belt profile and optimal location, featuring:

  • Dual pivot bearing
  • Options for steel, composite or PU guide rolls.
  • Conveyor idler rolls supplied in rubber or PU lagged or composite construction.
  • Standard and application specific designs.
  • Designed to minimise material buildup on the frame.

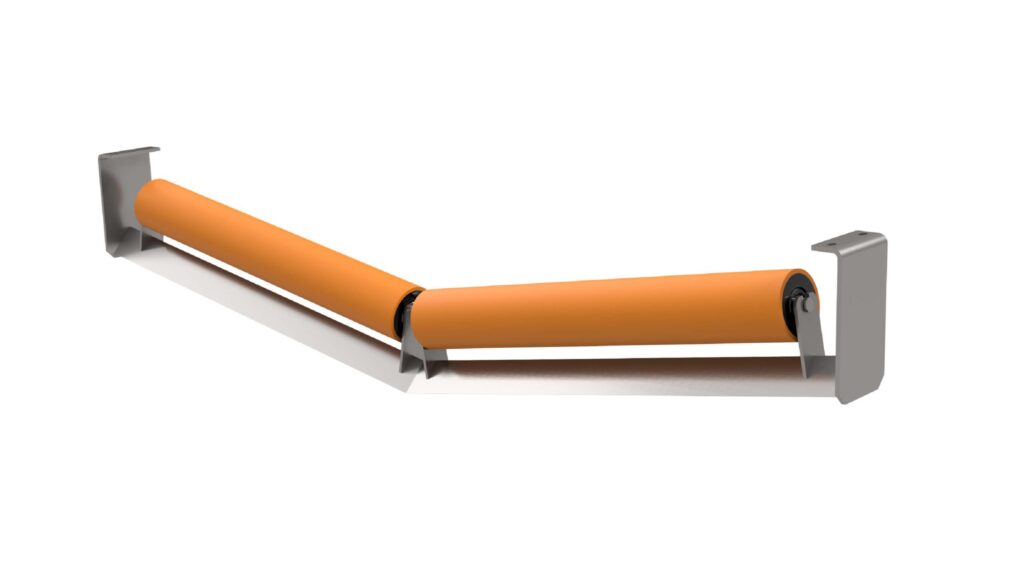

Vee Return

Our Vee return idlers are specifically designed for the return side of the belt, they’re available for all belt sizes with various options:

  • Available in various angles
  • 2, 4 and 6 roll designs
  • Retractable options
  • Tubular or angle support angle designs
  • Optional guide rolls can be added to assist conveyor tracking.
  • Offset and inline designs
  • Designed to minimise material buildup on the frame.

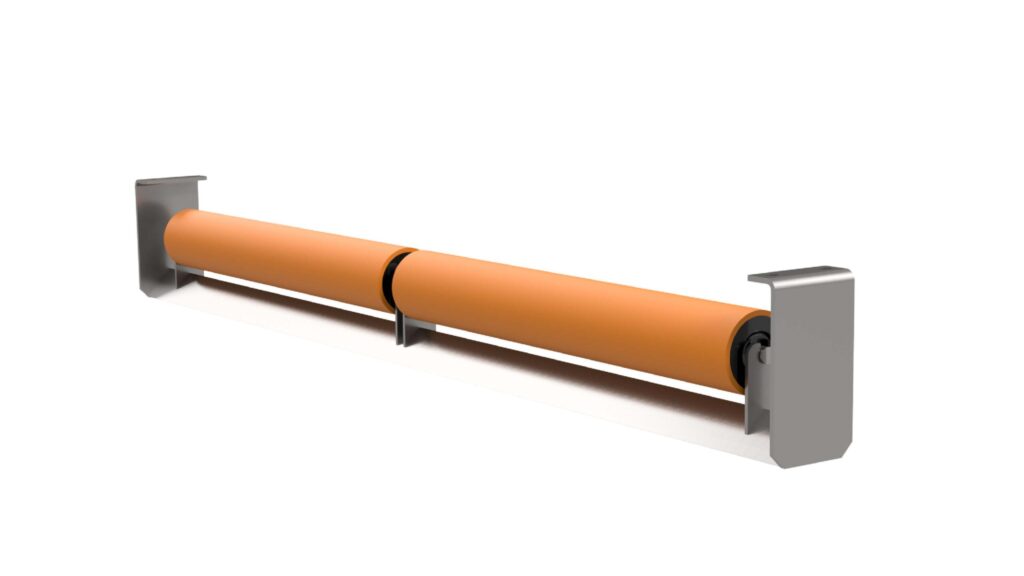

Flat Return

Our flat return conveyor idlers are available in various designs and options:

  • 1,2,3,4 & 6 roll designs
  • Angle or tubular designs depended on application.
  • Designed to minimise material buildup on the frame.
  • Offset and inline designs available.
